| Production Name: | Glass Bottle Beer Filling Machine | Function: | Washing Filling Capping |
|---|---|---|---|
| Model: | BCGF24-24-8 | Capacity: | 3500-5000B/H |
| Suitable Bottle: | Glass Bottle | Filling Material: | Beer, Carbonated Beverage, Gas Juice |
| Bottle Size: | 300-1000ml | Suitable Cap: | Crown Cap, Ring-pull Cap |
| Voltage: | Customized | Warranty: | 1 Year |
| High Light: | glass bottle filling and capping machine,water glass filling machine |
||
Description
This machine design on the basis of absorbing domestic and foreign advanced technology,and
integrates washing,filling and capping function in one unit,and mainly for filling glass bottle
carbonated drink,such as spirit,cola,cocktail,etc,adopts high precision machanical filling
valves,has features of no bottle,no vacuuming.
Opening gear combined gear box transmission,with engaging and disengaging gear
device,frequency conversion extends the speed modulation range.This machine has self oil
lubrication device so than the lubrication points could be lubricated regularly in time.The machine
is high efficiency,low noise and long life.The some parts of machine can be adjusted by different
sizes bottle.the level is controlled by the electric probe to assure the precise the liquid level.
Features
1. With high precision me chanical filling valves,our beer filling machine stops vacuumizing when there
are no bottles.
2. The beer filling machine is equipped with external mechanical valve,inside which there is no spring
or sealing element.
3. With high pressure frothing device,it is capable of double vacuum-pumping.
4. The beer filling machine makes use of combined transmission by open gear and gearbox,and
adopts frequency conversion stepless speed control,extending the speed modulating scope.
5. The machine has an antomatic lubricating device so that the lubrication points can be automatically
lubricated regularly in time.Also,our beer filling machine has high transmission efficiency,low noise and
long life.
6. In case of the blowout due to poor quality of the bottles during gas or beer filling,the filling valve will
automatically close and the auto-cleaning device will work to treat the broken bottles.
machine pictures
overall look

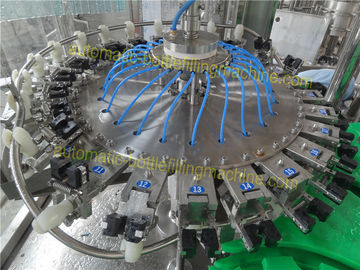

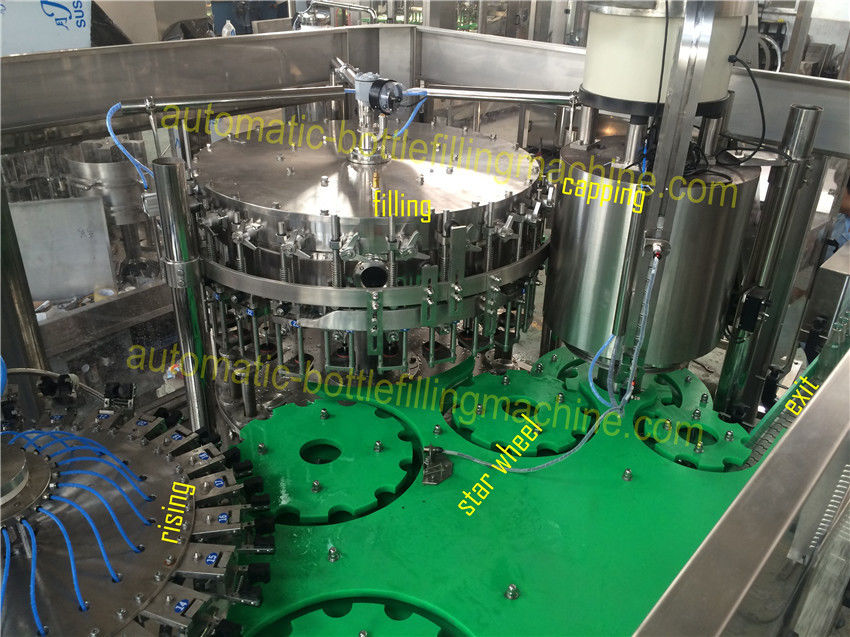

washing filling
sealing
sealing heads
technical parameter
| Mode | BCGF12-12-4 | BCGF18-18-6 | BCGF24-24-8 | BCGF32-32-10 | BCGF40-40-12 |
| 1500-2000 | 2000-3500 | 3500-5000 | 5000-8000 | 8000-12000 | |
| Bottle height (mm) | 100-350mm | ||||
| Bottle diameter (mm) | Φ52~Φ108mm | ||||
| Total power(kw) | 1.5 | 2.2 | 3.75 | 5.6 | 7.5 |
| Dimension(L*W*H)(mm) | 1700*1100*2300 | 2230*1320*2300 | 2750*1580*2500 | 3000*1850*2500 | 4200*2100*2500 |
| Total weight(kg) | 2000 | 2400 | 4500 | 5500 | 7000 |
