Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water

China Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water supplier
Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water supplier Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water supplier Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water supplier Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water supplier Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water supplier

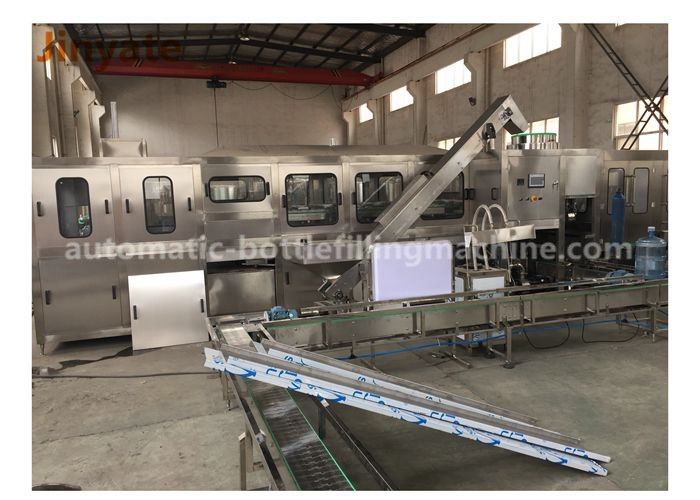

Large Image :  Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Dimension(L*W*H): 3800*1300*1600mm
Driven Type: Electric Capacity: 450BPH
Power: 3.8kw Control: PLC+ Touch Screen
Packing Speed: 3000-4000 Bags / Hour Processing Type: Washing, Filling, Sealing



Automatic 5 Gallon Plastic Buckets Mineral Water Bottle Filling





Machine


Introduction



The filling line specially produces 5 gallon barreled drinking water.It has the following types:80 type,150



type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In



order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing



and bleaching are used in bottle washer,washing solution can be used circularly.



Features



1. The whole machine adopts the bottleneck suspension operation design, so that the bottle in the high-



speed hanging operation state is stable and reliable, at the same time greatly reducing the number of



changes to make the replacement bottle more convenient and fast.



2. The new generation of stainless steel rotary bottle clamp, the clamp and above bottle screw parts do not



contact, and provided with a nozzle, the bottle wall sufficiently flush, no dead angle.



3. Adapt the Italy, Germany advanced technology. Quick and steady filling, accurate liquid level control.



Such as: no bottle no filling, flushing or filling when exploding bottle the filling valve will be automatically



closed, and automatic flushing and other advanced automatic control technology.



4. Equipped with perfect temperature control system and reflux system, with a sound automatic cleaning



system and control procedures.



5. The PLC computer program control and man-machine interface touch screen buttons, with cylinder



liquid level automatic control, no bottle no filling, no bottle no feeding cover functions etc, even with the



dial bottle star wheel clamping dislocation shutdown, stopping when lack the covers etc



6. Magnetic torque is used for screw cap, cap screwing, grasp. Torque stepless adjustable, the sealing is



tight and reliable, and the cover is not hurt.



7. Parts with water contact are made of high quality stainless steel, the main electrical components are



used internationally renowned manufacturers.





Technical parameter



Model QGF-150 QGF-300 QGF-450 QGF-600
Filling heads 1 2 3 4
Volume 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490
Capacity 150 300 450 600
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1
Motor power 1.75 3.8 3.8 7.5
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600



5 gallon filling complete line



Automatic decapper → External and Inner brusher → Rotary type barrel washing filling capping



machine → Cap elevator →Light checker→ bagging machine



Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water



Light checker



Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water




Capper elevator



Plastic Bucket Filling Machine Bottleneck Suspension Operation Design For Mineral Water




Electrical component for main machine:



No Name Brand Origin of place
1 Auto switch Zhengtai Zhejiang
2 PLC Mitsubishi Japan
3 Button,turn button,indicator light Schneider French
4 Air cylinder Sanli Hangzhou
5 Water pump for filling Nanfang Hangzhou
6 Water pump for filling Nanfang Hangzhou
7 Air cylinder of main shaft AIRTAC Taiwan
8 Lifting air cylinder AIRTAC Taiwan
9 Capping air cylinder AIRTAC Taiwan
