Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System

China Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System supplier
Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System supplier Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System supplier Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System supplier Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System supplier Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System supplier

Large Image :  Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Dimension(L*W*H): 3800*1300*1600mm Driven Type: Electric
Capacity: 450BPH Weight: 1600kg
Control: PLC+ Touch Screen Packaging Type: Barrel, Bottles, Cans
Application: Beverage, Chemical, Food Voltage: 220V/380V



450BPH Automatic Bottle Liquid Barrel 5 Gallon Drinking Water Filling



Machine


Introduction



1) Our barreled water producing line is specially designed for 3-5 gallon drinking water;



2)The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after



filling water;



3) Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the



barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by



multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel



can be cleaned absolutely. And then the filling machine and capping machine will start to work



automatically



4) In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to



the beverage;



5) Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink



labeling, packing, discharging



Whole 5 gallon water filling line



Water treatment system → Bottle blowing machine → Automatic decapper → External and Inner



brusher → Rotary type barrel washing filling capping machine → Cap elevator →Light checker



Heat shrinker





Technical parameter



Model QGF-150 QGF-300 QGF-450 QGF-600
Filling heads 1 2 3 4
Volume 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490
Capacity 150 300 450 600
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1
Motor power 1.75 3.8 3.8 7.5
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

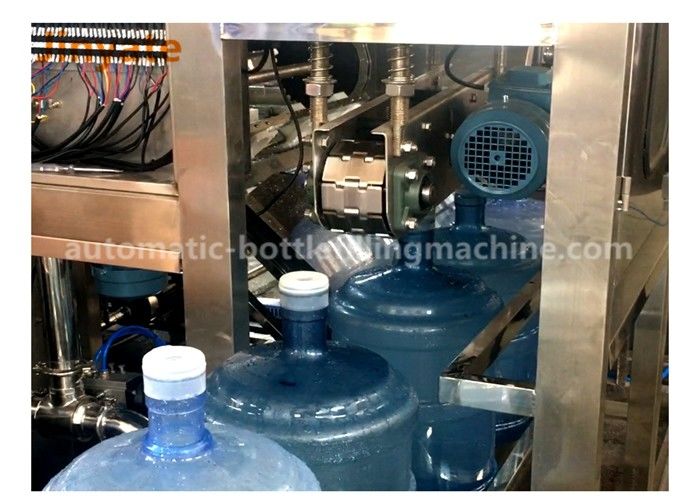

Filling part



Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System


Inside look



Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System



Automatic plastic film Bagging machine



Touch Screen 5 Gallon Water Filling Machine 450BPH With Water Treatment System





Electric Components Brands Supplier



Main composition Description Supplier
PLC Mitsubishi (Japan) , Siemens (Germany)
Touch screen Weinview(Taiwan)
Frequency converter Mitsubishi (Japan) , Siemens (Germany)
Air switch Schneider (France)
Breaker Siemens (Germany)
Contactor Siemens (Germany)
Photoelectric switch Omron (Japan)


Our main products

1. bottling minereal/pure water production line (500ml, 1000ml,2000ml);

2. barrel mineral/ pure water production line (3L,5L,10L,19L,)

3. bottling carbonated beverage production line (like coca cola);

4. bottling juice production line;

5. canning beverage production line;

6. glass bottle beverage production line;

7. carbonated beverage and juice production auxiliary plants
