20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray

China 20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray supplier
20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray supplier 20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray supplier 20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray supplier 20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray supplier 20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray supplier

Large Image :  20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Dimension(L*W*H): 3800*1300*1600mm
Driven Type: Electric Processing Type: Water
Power: 3.8kw Control: PLC+ Touch Screen
Packaging Type: Barrel, Bottles, Cans Application: Beverage, Chemical, Food



20 Liter Bottled Water Pail Bucket 5 Gallon Barrel Pure Water Filling



Machine


Introduction



Automatic decapper → External and Inner brusher → Rotary type barrel washing filling capping



machine → Cap elevator →Light checker→ bagging machine



1. This filling line specially produces 3&5 gallons barreled drinking water.


2. This series barreled filling production line integrates bottle washer, filler and sealer into one unit.


3. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections



washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle



caps automatically.


4. This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those



caps are aseptic and healthy.


5. This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and



products discharging.


6. It has features of complete functional, novel design, and high degree of automation. It is a new kind of



barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies



together.



Fostream 20 liter bottled water pail bucket 5 gallon barrel pure water filling machine



Technical parameter



Model QGF-150 QGF-300 QGF-450 QGF-600
Filling heads 1 2 3 4
Volume 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490
Capacity 150 300 450 600
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1
Motor power 1.75 3.8 3.8 7.5
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600


 Capping part



20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray


Capper elevator



20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray


Automatic Outside brusher



20 Liter 5 Gallon Water Filling Machine Stainless Steel 304 Disinfectant Spray

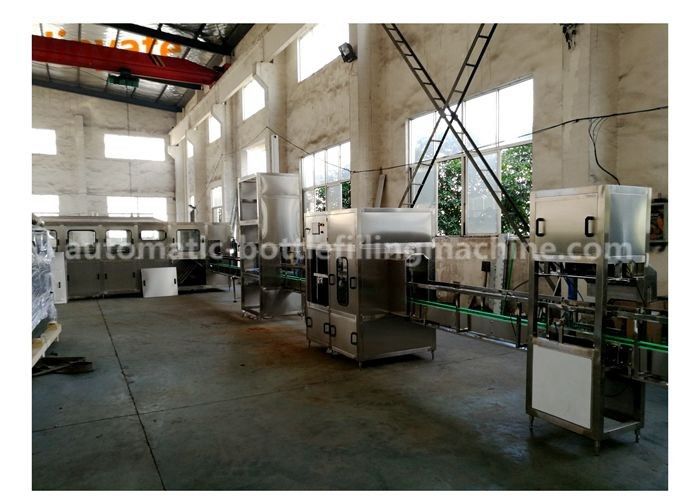

"This QGF-450 5 gallon water filling machine is designed for our Russian customer"




Electrical component for main machine:



No Name Brand Origin of place
1 Auto switch Zhengtai Zhejiang
2 PLC Mitsubishi Japan
3 Button,turn button,indicator light Schneider French
4 Air cylinder Sanli Hangzhou
5 Water pump for filling Nanfang Hangzhou
6 Water pump for filling Nanfang Hangzhou
7 Air cylinder of main shaft AIRTAC Taiwan
8 Lifting air cylinder AIRTAC Taiwan
9 Capping air cylinder AIRTAC Taiwan
