3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads

China 3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads supplier
3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads supplier 3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads supplier 3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads supplier 3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads supplier 3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads supplier

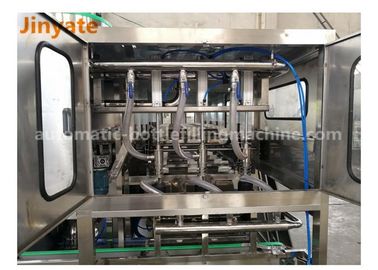

Large Image :  3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Dimension(L*W*H): 3800*1300*1600mm
Color: Silver Gray Processing Type: Water
Packing Type: Plastic Barrel Power: 3.8kw
Warranty: One Year For Free Control: PLC+ Touch Screen



450BPH Automatic Bottle Liquid Barrel 5 Gallon Drinking Water Filling



Machine


Introduction



The 5 gallon water filling machine is integrated with bottle washing, filling, capping functions.There are 8



washing positions in the machine :hot alkaline water, drain off, sterilize, drain off, hot water, drain off,



clean water, clean water washing processing. For recycled gallon bottles, there are also de-capper,



external brusher etc. auxiliary equipments. The machine is full automatic and controlled by Mitsubishi PLC



and touch screen. The features of the machine are high efficiency and low consumption. The disinfectant



can use circularly.



There are also other capacity for your choice: 80 BPH,150 BPH,300 BPH,450 BPH,600 BPH,900 BPH.





Technical parameter



Model QGF-150 QGF-300 QGF-450 QGF-600
Filling heads 1 2 3 4
Volume 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490
Capacity 150 300 450 600
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1
Motor power 1.75 3.8 3.8 7.5
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600



Flow:

Automatic decapper → External and Inner brusher → Rotary type barrel

washing filling capping machine → Cap elevator →Light checker→ bagging

machine


Automatic decapper



3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads


Automatic external brusher



3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads
Automatic Internal brusher



3.8KW Power 20 Liter Water Bottle Making Machine , Water Gallon Machine 3 Filling Heads


"This QGF-450 5 gallon water filling machine is designed for our Russian customer"




Electrical component for main machine:



No Name Brand Origin of place
1 Auto switch Zhengtai Zhejiang
2 PLC Mitsubishi Japan
3 Button,turn button,indicator light Schneider French
4 Air cylinder Sanli Hangzhou
5 Water pump for filling Nanfang Hangzhou
6 Water pump for filling Nanfang Hangzhou
7 Air cylinder of main shaft AIRTAC Taiwan
8 Lifting air cylinder AIRTAC Taiwan
9 Capping air cylinder AIRTAC Taiwan
10 Air cylinder for pushing empty barrels AIRTAC Taiwan
11 Air cylinder for filling valves AIRTAC Taiwan
12 Air source handler AIRTAC Taiwan
13 Air pipes,joint,etc AIRTAC Taiwan
14 Spraying nozzle Shanghai Shanghai
15 Chain plate SUS 304 Our company
16 Water inlet valve SUS 304 Our company
17 Filling valve SUS 304 Our company
