Isobaric Filling Carbonated Beverage Bottling Equipment 7000BPH For Energy Drink

China Isobaric Filling Carbonated Beverage Bottling Equipment 7000BPH For Energy Drink supplier
Isobaric Filling Carbonated Beverage Bottling Equipment 7000BPH For Energy Drink supplier Isobaric Filling Carbonated Beverage Bottling Equipment 7000BPH For Energy Drink supplier Isobaric Filling Carbonated Beverage Bottling Equipment 7000BPH For Energy Drink supplier Isobaric Filling Carbonated Beverage Bottling Equipment 7000BPH For Energy Drink supplier

Large Image :  Isobaric Filling Carbonated Beverage Bottling Equipment 7000BPH For Energy Drink

Product Details:

Place of Origin: China(mainlande)
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: DCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film wrapping, standard wooden cases package
Delivery Time: 35 working days
Supply Ability: 90 sets per hour
Contact Now
Detailed Product Description
Product Name: Carbonated Beverage Filling Machine Function: Rising Filling Capping
Model: DCGF24-24-8 Capacity: 7000B/H
Filling Type: Isobaric Filling Filling Material: Carbonated Drink, Soda Water, Soft Drink, Energy Drink Etc
Suitable Bottle: PET Bottle, Polyester Bottle Dimension: 2750*2180*2200
Weight: 5500kg Material: SUS304
Warranty: 1 Year



PET Bottle Red Bull Energy Drink Filling Machine / Shots Monoblock



Filler/Capper





Description



1). Air conveyor is directly linked with feed-in starwheels, making it easier to change bottles without screws



and conveyor chains.





2). Bottles are transferred in the manner of clamping neck. Bottles can be changed through some replacement



of steel clamps, which instead of adjusting the height of machine.





3). Rinser-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent



pollution.





4). Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save



water. Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean



up.





5). Replacement between CO2 and O2 ensure almost no O2 in bottle, long filling pipe reduce O2 content to



null. Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.





6). High-speed and highly accurate bottling valves ensure no loss of liquid at high speed. Equipped with CIP



clean-in-place.







technical parameter



Model: CGF24-24-8
Capacity: 500ml 5000-7000
Bottle shape: Roud or square
PET bottle: (mm) (Bottle Diameter): φ50-φ110mm (Height): 150-340mm
cap: PE srew cap
filling precision: ≤ ± 5mm
filling pressure: (Mpa) 0.15-0.35
rinsing pressure: (Mpa) 0.2-0.25
filling volume: (L) 8
overall size: (mm) 3800*2950*2400
weight: (kg) 5500







machine pictures



This Automatic 3-in-1 Wash-filling-capping Carbonated Water Filling Machine is used to produce



bottled carbonated beverage, like ,cola, soft drink,sparkling water or other gas Liquid. This



Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from



250ml-2000ml meanwhile few changeover is needed. It has 24 rising heads, 24 filling heads and



8 capping heads, can filling beverage 7000 bottles per hour.

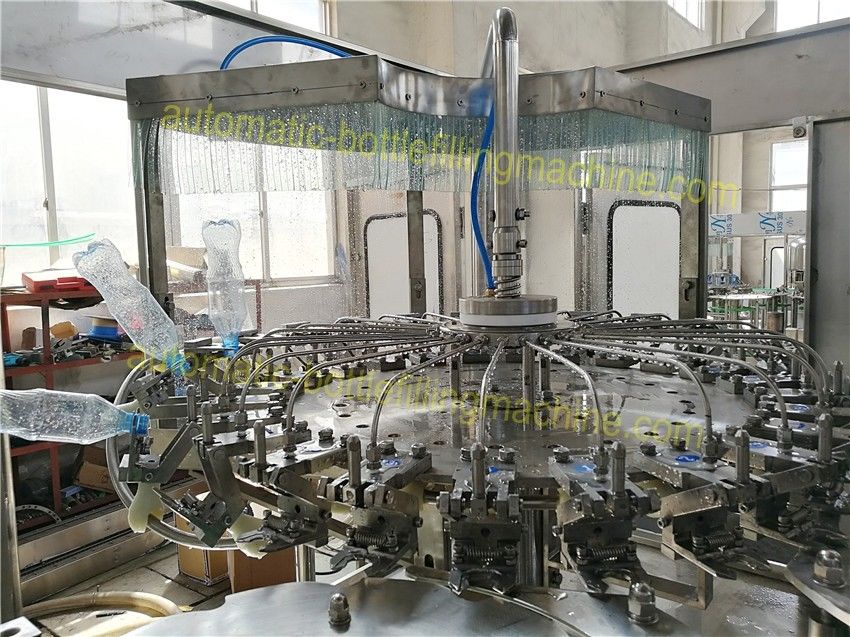

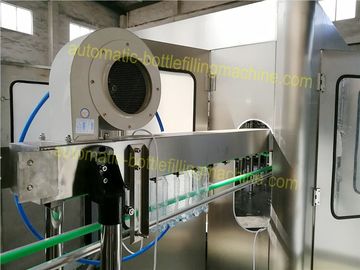

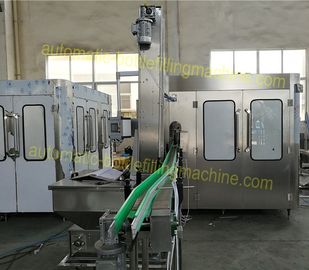

external&internal look



Isobaric Filling Carbonated Beverage Bottling Equipment 7000BPH For Energy Drink



Isobaric Filling Carbonated Beverage Bottling Equipment 7000BPH For Energy Drink



Isobaric Filling Carbonated Beverage Bottling Equipment 7000BPH For Energy Drink



we also have other capacity



Model DCGF16-12-6 DCGF18-18-6 DCGF24-24-8 DCGF32-32-10 DCGF40-40-12 DCGF50-50-15
Number of rising heads 16 18 24 32 40 50
Number of filling heads 12 18 24 32 40 50
Number of capping heads 6 6 8 10 12 15
Bottle standard(mm)

Diameter:Φ50-Φ108

Height:150-320

Rated production capacity(500ml) 2000BPH 4000BPH 7000BPH 8000BPH 10000BPH 12000BPH
Installed capacity(KW) 3.8 4.3 6.5 8.7 9.5 12



we are professional in beverage filling machine, if you tell us your



request, we will offer you the most commercial proposal... ...
