PET Bottle Carbonated Drink Filling Machine 7000BPH Multiple Functions Monoblock Filler

China PET Bottle Carbonated Drink Filling Machine 7000BPH Multiple Functions Monoblock Filler supplier
PET Bottle Carbonated Drink Filling Machine 7000BPH Multiple Functions Monoblock Filler supplier PET Bottle Carbonated Drink Filling Machine 7000BPH Multiple Functions Monoblock Filler supplier PET Bottle Carbonated Drink Filling Machine 7000BPH Multiple Functions Monoblock Filler supplier PET Bottle Carbonated Drink Filling Machine 7000BPH Multiple Functions Monoblock Filler supplier

Large Image :  PET Bottle Carbonated Drink Filling Machine 7000BPH Multiple Functions Monoblock Filler

Product Details:

Place of Origin: China(mainlande)
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: DCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film wrapping, standard wooden cases package
Delivery Time: 35 working days
Supply Ability: 90 sets per hour
Contact Now
Detailed Product Description
Product Name: Carbonated Beverage Filling Machine Function: Rising Filling Capping
Model: DCGF24-24-8 Capacity: 7000B/H
Filling Type: Isobaric Filling Filling Material: Carbonated Drink, Soda Water, Soft Drink, Energy Drink Etc
Suitable Bottle: PET Bottle, Polyester Bottle Dimension: 2750*2180*2200
Weight: 4000kg Material: SUS304
Warranty: 1 Year



PET Bottle Red Bull Energy Drink Filling Machine / Shots Monoblock



Filler/Capper









technical parameter





Model DGCF24-24-8
Production capacity(500ml) 6000-8000
Filling precision ≤±5mm(liquid level)
Filling pressure(MPa) <0.4
Polyester bottle standard(mm) Bottle neck: 50-100 bottle height:150-320
Suitable cap shape Plastic screw cap
Water pressure of washing bollte(MPa) 0.18-0.25
Water consumption for water bottle(kg/h) 2500
Spraying positon 6
Dripping bottle position 3.5
Gas source pressure 0.4
Gas consumption (m3/min) 0.4

Total power

(kw)

6.57
Total weight 4000

Dimension(L*W*H)

mm

2750*2180*2200



Features



1. Multiple usage: The filler provide a comprehensive range of different bottle sizes(height



150-310mm, Dia. 50-108mm)



2. Easy adjustment: An automatic height adjust device is available which offers you very



easy operation only by pressing a button. For filling different size of bottles, relative parts



can be easily and quickly changed without tools.



3. Advanced construction features: The filler carousel is mounted on a huge heavy duty



combined bearing, which guarantees optimum smooth running of the filling bowl. The



centering bell assemblies precisely locate the necks of bottles onto filling valves.



4. High efficiency and low beverage loss: Owing to the special constructions features the



machinery can run at high speed with low rate of glass broken. In the event of bottle



breakage a burst flushing system can remove any fragments from the bottle platform, filling



valve and centering bell assembly, filling valve automatically be closed in very short time



avoiding beverage and gas loss.



5. Sanitation: All parts which contact with beverage are made with high quality polished



stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.



Using PLC control the machine monitors, the filling liquid level automatically. Made up of



high quality stainless steel, it is sanitation. Operation and maintenance is convenient.

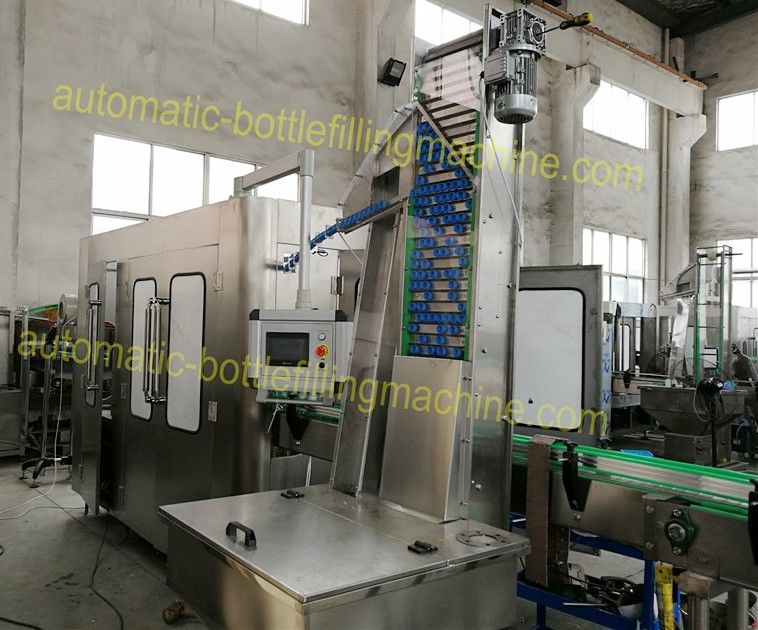

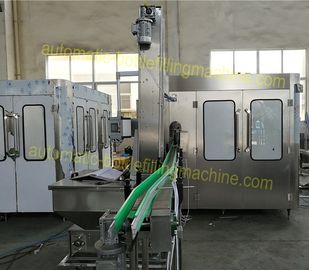

machine pictures



This Automatic 3-in-1 Wash-filling-capping Carbonated Water Filling Machine is used to produce



bottled carbonated beverage, like ,cola, soft drink,sparkling water or other gas Liquid. This



Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from



250ml-2000ml meanwhile few changeover is needed. It has 24 rising heads, 24 filling heads and



8 capping heads, can filling beverage 7000 bottles per hour.

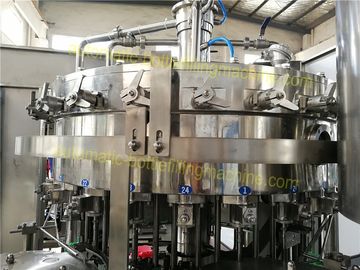

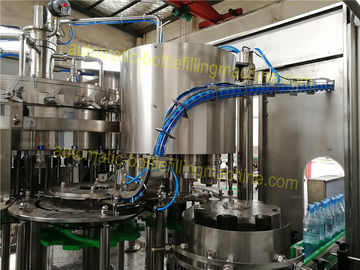

external&internal look



PET Bottle Carbonated Drink Filling Machine 7000BPH Multiple Functions Monoblock Filler



PET Bottle Carbonated Drink Filling Machine 7000BPH Multiple Functions Monoblock Filler



electrical system



PET Bottle Carbonated Drink Filling Machine 7000BPH Multiple Functions Monoblock Filler

we also have other capacity



Model DCGF16-12-6 DCGF18-18-6 DCGF24-24-8 DCGF32-32-10 DCGF40-40-12 DCGF50-50-15
Number of rising heads 16 18 24 32 40 50
Number of filling heads 12 18 24 32 40 50
Number of capping heads 6 6 8 10 12 15
Bottle standard(mm)

Diameter:Φ50-Φ108

Height:150-320

Rated production capacity(500ml) 2000BPH 4000BPH 7000BPH 8000BPH 10000BPH 12000BPH
Installed capacity(KW) 3.8 4.3 6.5 8.7 9.5 12



we are professional in beverage filling machine, if you tell us your



request, we will offer you the most commercial proposal... ...
