PLC Control Juice Bottle Filling Machine With Washed Water Recycling System

China PLC Control Juice Bottle Filling Machine With Washed Water Recycling System supplier
PLC Control Juice Bottle Filling Machine With Washed Water Recycling System supplier PLC Control Juice Bottle Filling Machine With Washed Water Recycling System supplier PLC Control Juice Bottle Filling Machine With Washed Water Recycling System supplier PLC Control Juice Bottle Filling Machine With Washed Water Recycling System supplier

Large Image :  PLC Control Juice Bottle Filling Machine With Washed Water Recycling System

Product Details:

Place of Origin: China(mainland)
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: RCGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film wrapping, standard wooden cases package
Delivery Time: 35 working days
Supply Ability: 90 sets per year
Contact Now
Detailed Product Description
Production Name: Juiced Beverage Filling Machine Model: RCGF18-18-6
Function: Rising, Filling, Capping Suitable Bottle: PET Plastic Bottle
Suitable Cap: Plastic Screw Cap Power Supply: 380V 50HZ 3Phases
Control: PLC+Touch Screen Capacity: 6000 Bottles Per Hour
Filling Material: Juice, Water, Tea Warranty: 1 Year



 PLC Ccontrol Tea Juice / Apple Juice Machine / Aseptic Juice Filling



Production Line




Product introduction



This machine is the accessory of Washing-Filling-Capping 3-in-1 Unit. It can convey unorderly



caps to the chute of the cap orderer and prepare for the next procedure. It has novel structure and



is easy to operate, which has not only lightened the intensity of labor but also satisfied the



sanitary requirement of the whole production line. So it is the necessary machine for the drink



producing company of middle or top grade.

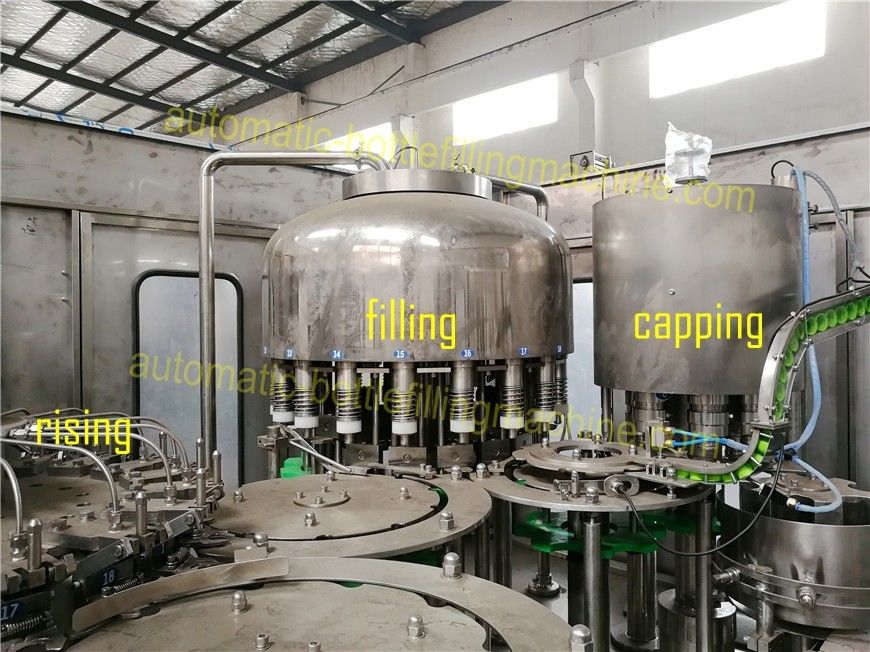

This machine integrated rising, filling and capping four functions in one unit, it has18 rising heads,



18 filling heads and 6 capping heads, can filling 6,000bottles per hour, suitable for PET bottle,



non-gas liquid, like various juiced beverage, water etc.



technical parameter



Model RCGF16-16-8
Capacity 6000bph (500ml PET bottle)
Suitable bottle Polyester bottle, PET bottle
Filling materail Fruit juice, tea, water
Bottle Height 150-310mm
Bottle Diameter 40-108mm
Filling Temperature ambient
Filling Technology gravity filling
Applications purified water and mineral water
Power supply 380V 50Hz 3Phases or customized
Total power 6.57KW
Dimension 2450*1800*2200mm
Weight 5500kg


Machine pictures

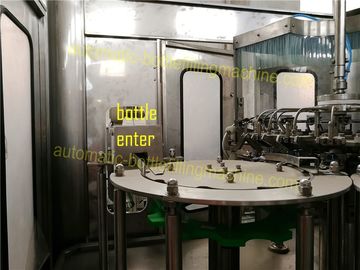

Washing part of bottle washing filling capping machine



Neck Control with plastic snap on the gripper.


Water distributor combined with Food Grade Rubber plate & SUS304 cover.


SUS304 water collecting tray


Spraying inject design, can completely washing the bottles.


Washed water recycling system, for water saving !! (Washed bottle---drip in water tank--water pump---raw



water tank)





PLC Control Juice Bottle Filling Machine With Washed Water Recycling System

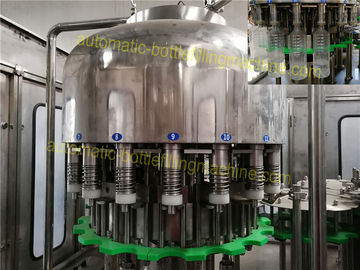

Filling part of bottle washing filling capping machine



The entire filler is isobar filling system.


High accurate SUS304L construction filling nozzle, make sure high accurate filling level


SUS304L liquid bowl, & pipeline system.


No bottles, no filling


Annulus Liquid bowl, with automatic water level controller



 PLC Control Juice Bottle Filling Machine With Washed Water Recycling System



Capping part of bottle washing filling capping machine



Place & capping system. Automatic caps arranging, feeding.


Electromagnetic capping heads, with burden discharge function,


All 304stainless steel construction


No bottle no caps delivery.


Automatic stop when lack of bottle.





PLC Control Juice Bottle Filling Machine With Washed Water Recycling System




We are professional in beverage filling machine production, pls tell

us your request, we will show you best proposal... ...
