Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance

China Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance supplier
Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance supplier Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance supplier Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance supplier Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance supplier Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance supplier

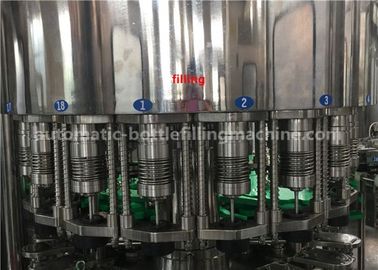

Large Image :  Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: YGCF18-18-6-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Filling Machine Filling Temperature: Room Temperature
Automatic Grade: Fully-automatic Weight: 3000kg
Overall Dimension: 2450*1800*2200mm Power: 6.68kw
Filling Material: Juice,tea,non-gas Water,milk Capacity: 6000BPH



Juice Production Machine Filling / Bottling / Plant Designed For India



Clients





Introduction:



1. This series equipment is used for hot filling and production of tea, juice, etc.



2. This machine integrates washing, filling and capping(two kinds) together.



3. It is scientific and reasonable design,simple operation, is the first choice equipment for hot filling



beverage production.



4. It can used for glass bottle





Features:



1. The glass bottle with crown capping way, it can also use ring-pull capping,customized design with two



kinds of capping.



2. It runs automatic by advanced PLC controller with HMI touch screen.



3. The conveyor runs bt frequency changer, it synchronous with the host inverter makes bottle feeding



more stable and reliable.



4. Reliable photoelectric detection, high-efficiency fully automatic production, simple operation.



5.The machine can be operated and inspected by one operator.



6. SUS304/316 structure with good surface treatment is anti-corrosion and easy to clean.



7. Igus sleeve in the machine can make sure the longer self-life and reduce the maintenance cost.





Technical parameter

Model RCGF18-18-6-6
Productivity 6000BPH
Rinsing Head 18
Filling Head 18
Crown Capping Head 6
Ring-pull capping head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 3 m3/h
Rinsing Water Consumption 1 m3/h
Motor Power 6.68kW
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling



Electrical boxes



Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance



Overall look of the machine



Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance



Conveyor system



Glass Bottle Fruit Juice Production Line , Hot Fill Bottling Equipment ±2% Filling Tolerance



IF you want to the detailed quotation,please leave me these message


1. bottle vlolume


2. bottle materail (machines for glass bottle and plastic bottle are different)


3. how many bottles per hour you want to produce ?


4. do you need this water filling machines only or whole water production line



Components' brand

Frequency inverter

MITSUBISHI



Touch screen Taiwan

PLC MITSUBISHI

Pneumatic components Airtac

Photocell switch and proximity switch

Taiwan
