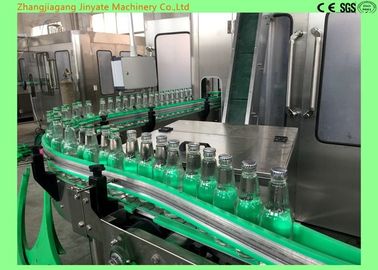

6000BPH Glass Bottle Filling Machine PLC Control System For Lemon / Sugarcane Juice

6000BPH Glass Bottle Filling Machine PLC Control System For Lemon / Sugarcane Juice
6000BPH Glass Bottle Filling Machine PLC Control System For Lemon / Sugarcane Juice 6000BPH Glass Bottle Filling Machine PLC Control System For Lemon / Sugarcane Juice 6000BPH Glass Bottle Filling Machine PLC Control System For Lemon / Sugarcane Juice

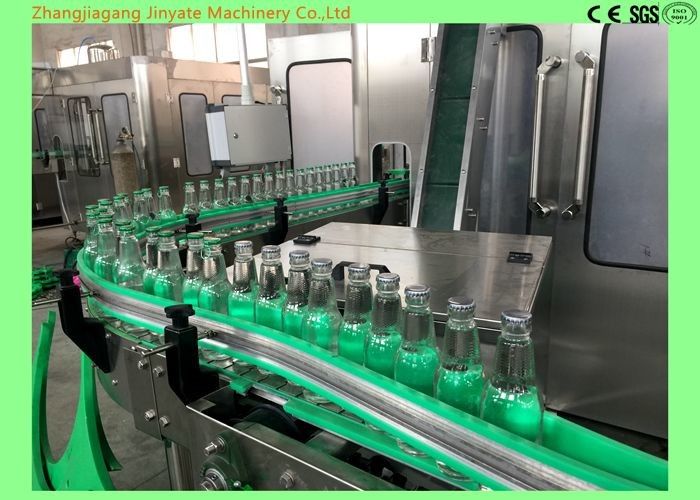

Large Image :  6000BPH Glass Bottle Filling Machine PLC Control System For Lemon / Sugarcane Juice

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: YGCF18-18-6-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Weight: 3000kg Dimension: 2450*1800*2200mm
Voltage: 380V 50Hz Capacity: 6000BPH
Warranty: One Year Control System: PLC Control+touch Screen
Filling Type:: Normal Pressure Filling Material: Food Grade Stainless Steel 304
High Light:

glass bottling equipment

,

water glass filling machine



6000BPH lemon / sugarcan juice glass bottle filling machine /



production line



Specifications:

1. juice filling machine,juice bottling plant,juice bottling machine

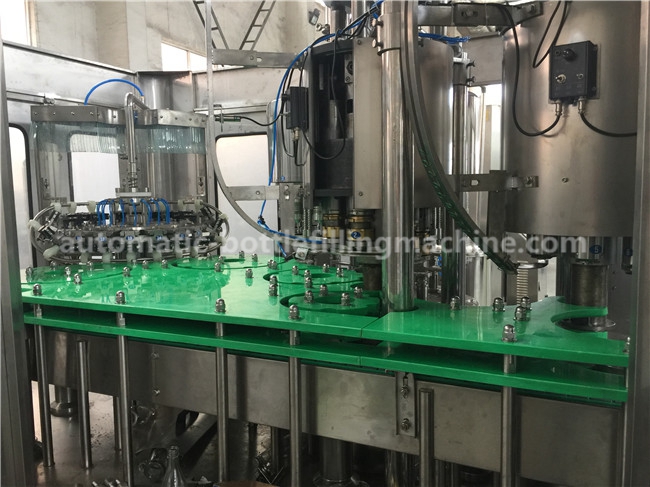

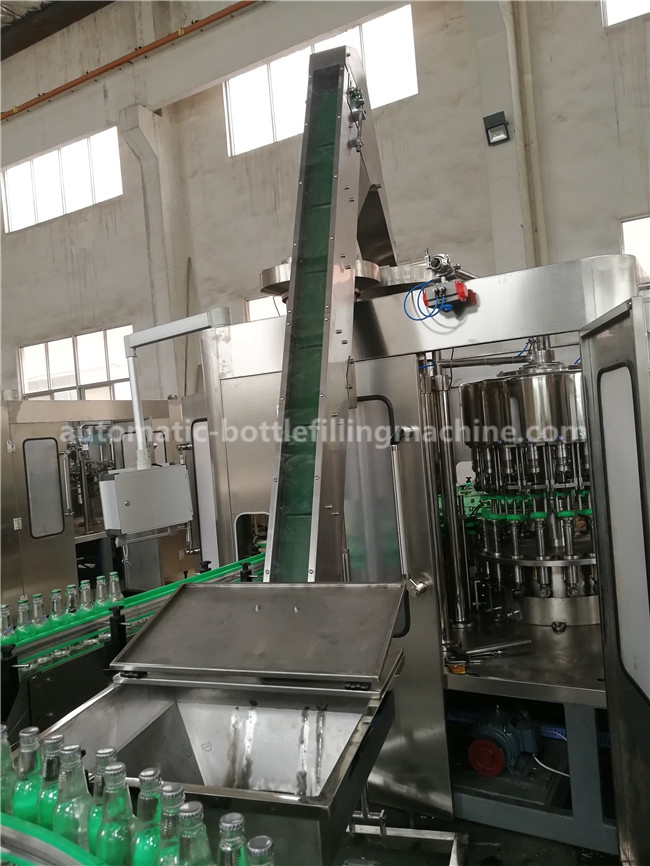

2. 4-in-1 monoblock glass bottle filling machine

3. Rinsing,filling,two kinds of capping,crown capping and  ring-pull capping

4. Customized for our clients


Character:

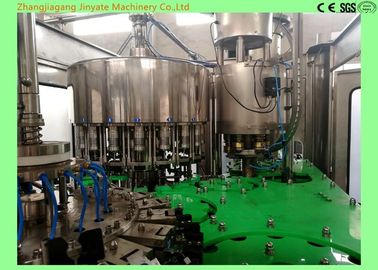

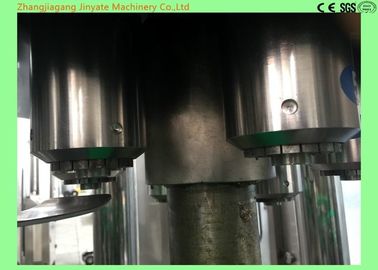

The whole machine adopts clip bottle neck suspension process design, and uses the filling valve

lifting, can satisfy the requirement of a 95℃ hot filling technology. Filling movements is smooth, fast, high

precision, reliable sealing, low material loss of functionality, and effectively avoid the secondary pollution

of bottle opening. Simply replacing equivalent components, can realize conversion between different

bottles.

Human-machine interface touch-screen control, PLC computer control, frequency converter

control and other advanced technology, high degree of automation. The main electrical components

adopt international famous manufacturers.


Technical parameter

Model RCGF18-18-6-6
Productivity 6000BPH
Rinsing Head 18
Filling Head 18
Crown Capping Head 6
Ring-pull capping head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 3 m3/h
Rinsing Water Consumption 1 m3/h
Motor Power 6.68kW
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling


Components' brand

1. Main motor:National brand

2. Sliding bearing:Taiwan

3. Frequency inverter: MITSUBISHI

4. Touch screen:Taiwan

5. PLC: MITSUBISHI

6. Pneumatic components: Airtac

7. Seals:National brand

8. Photocell switch and proximity switch:Taiwan


We are professional beverage filling machine manufacturer for more

than ten years.If any requirements,feel free to contact me,please!!!!!
