4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way

China 4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way supplier
4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way supplier 4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way supplier 4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way supplier 4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way supplier 4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way supplier

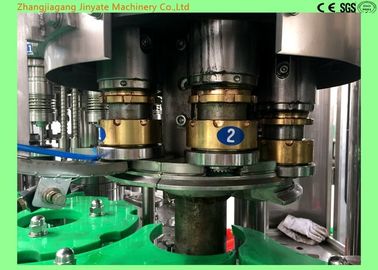

Large Image :  4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: YGCF18-18-6-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Filling Machine Weight: 3000kg
Dimension: 2450*1800*2200mm Power: 6.68kw
Capacity: 6000BPH Color: Silver Gray
Control System: PLC Control Filling Type:: Normal Pressure Filling



4-in-1 glass bottle juice production line / filling machine for juice



factory





Introduction:



The machine is divided into 4 parts:bottle washing, filling,crown capping,ring-pull capping



Bottle washing - The clamps hold the bottle neck and turn bottles along the guide rail.



Filling - Clean bottles enter the pulp filling position. The empty bottles will be rised to start to filling along



the rail.



Capping - When bottles enter capping position the sensor will send the signal and the caps will be fed by



air cylinder. The capping process will begin.





Features:



1. This type machine is mainly used in filling and packing juice, tea, wine, soy, stc. It is suitable for



PET,glass bottle.



2. The PET bottle with screw capping way, it can be equipped with aluminum cap and plastic cap.



3. The machine contains flushing, filling and capping three functions together in one.



4. It runs automatic bt advanced PLC controller with HMI touch screen.



5. The conveyor runs bt frequency changer, it synchronous with the host inverter makes bottle feeding



more stable and reliable.



6. Reliable photoelectric detection, high-efficiency fully automatic production, simple operation.



Technical parameter

Model RCGF18-18-6-6
Productivity 6000BPH
Rinsing Head 18
Filling Head 18
Crown Capping Head 6
Ring-pull capping head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 3 m3/h
Rinsing Water Consumption 1 m3/h
Motor Power 6.68kW
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling



 4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way



4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way



4 In 1 Multifunctional Juice Bottle Filling Machine PET Bottle With Screw Capping Way
