Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment

China Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment supplier
Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment supplier Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment supplier Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment supplier Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment supplier

Large Image :  Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment

Product Details:

Place of Origin: China(mainland)
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: RCGF40-40-40-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film wrapping, standard wooden cases package
Delivery Time: 35 working days
Supply Ability: 90 sets per year
Contact Now
Detailed Product Description
Production Name: Juiced Beverage Filling Machine Model: RCGF40-40-40-12
Function: Sterilizing, Rising, Filling, Capping Suitable Bottle: PET Plastic Bottle
Suitable Cap: Plastic Screw Cap Sterilizing Heads: 40
Rising Heads: 40 Filling Heads: 40
Capping Heads: 40 Capacity: 20000 B/H
Warranty: 1 Year Materail: SUS304



Mango / Sugar Cane Juice PET Bottling Filling And Sealing Machine



Plant Price


Product introuduction

This machine integrated sterilizing, rising, filling and capping four functions in one unit, it has 40

sterilizing heads, 40 rising heads, 40 filling heads and 12 capping heads, can filling 20,000

bottles per hour, suitable for PET bottle, non-gas liquid, like various juiced beverage, water etc.

Features

1) Material of filling valve and liquid tank is 304

2)  Main motor:National brand

3)  Sliding bearing:Taiwan

4)  Frequency inverter: MITSUBISHI

5)  Touch screen:Taiwan

6)  PLC: MITSUBISHI

7)  Pneumatic components: Airtac

8)  Seals:National brand

9)  Photocell switch and proximity switch:Taiwan


Detailed parameter



  20000BPH 500ml / 10000BPH 1L/ 7000BPH 1.5L/ 5000BPH 2L juice filling machine
Machine model Sterilizing head 40 heads
Rinsing head 40 heads
Filling head 40 heads
Capping head 12 heads
Suitable bottle materail PET
Volume 100-2000 ml
Body diameter 50-108 mm
Body height 50-310 mm
Suitable cap material Plastic screw cap
diameter 28-38 mm
Main performance parameters Producing capacity 6000BPH(250ML-500ML) bottles per hour
voltage 380V 50HZ 3Phases
Power 10 KW
Dimension 6250*3050*2300mm mm
Weight 7500 kg




Machine pictures

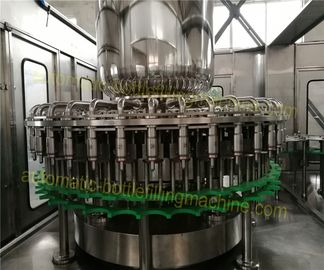

overall look

Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment

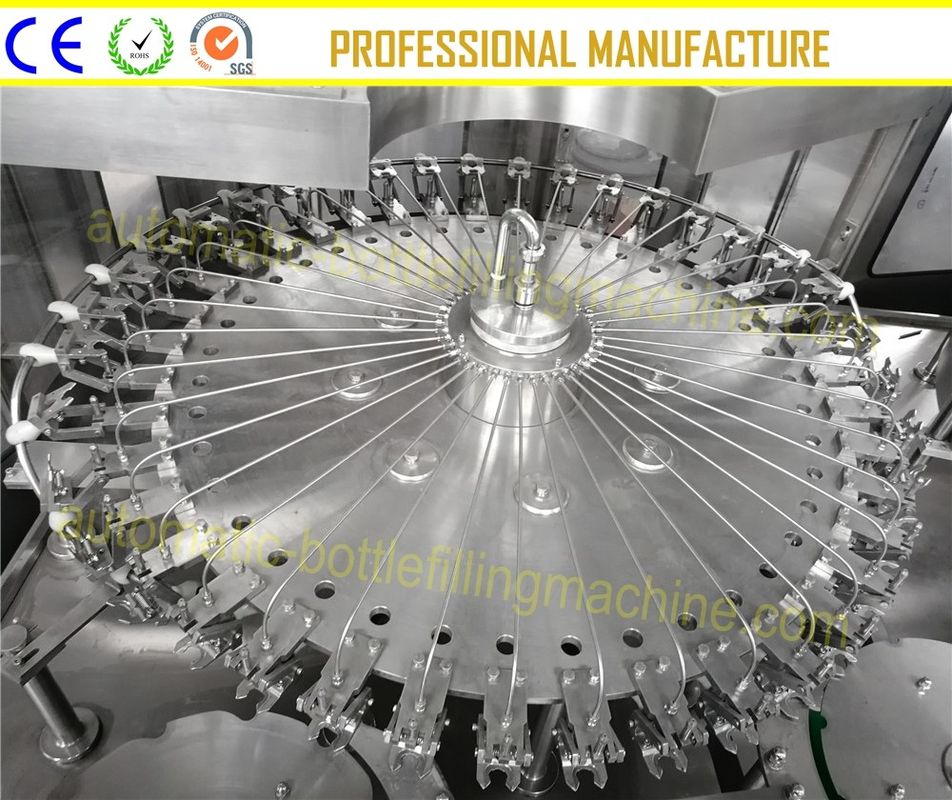

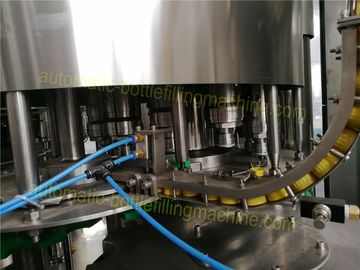

 inner look



Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment

electrical system

Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment

 We also have rising filling capping 3-in-1 monobloc



Mango Juice Filling Machine 6250*3050*2300mm , Small Scale Juice Bottling Equipment


We are professional in beverage filling machine production, pls tell

us your request, we will show you best proposal... ...
