Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty

Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty
Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty

Large Image :  Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty

Product Details:
Place of Origin: China(mainland)
Brand Name: JIAYUAN
Certification: CE SGS
Model Number: RCGF40-40-40-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film wrapping, standard wooden cases package
Delivery Time: 35 working days
Supply Ability: 90 sets per year
Detailed Product Description
Production Name: Juiced Beverage Filling Machine Model: RCGF40-40-40-12
Function: Sterilizing, Rising, Filling, Capping Suitable Bottle: PET Plastic Bottle
Suitable Cap: Plastic Screw Cap Power Supply: 380V 50HZ 3Phases
Control: PLC+Touch Screen Material: SUS304
Capacity: 20000 Bottles Per Hour Warranty: 1 Year
High Light:

fruit juice production line

,

juice bottling machine



Lemon / Pineapple Juice Filling Making Production Equipment Line

Prices


Product introuduction

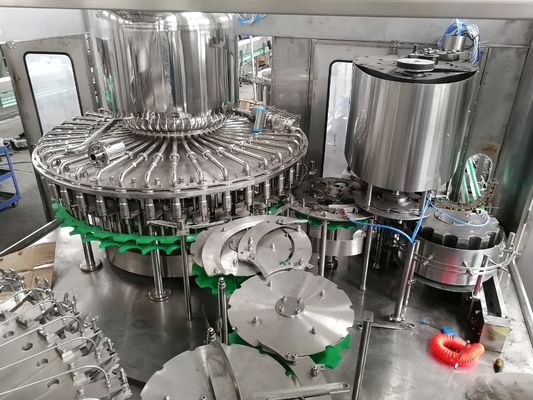

This machine integrated sterilizing, rising, filling and capping four functions in one unit, it has 40

sterilizing heads, 40 rising heads, 40 filling heads and 12 capping heads, can filling 20,000

bottles per hour, suitable for PET bottle, non-gas liquid, like various juiced beverage, water etc.

Features

1) Material of filling valve and liquid tank is 304

2)  Main motor:National brand

3)  Sliding bearing:Taiwan

4)  Frequency inverter: MITSUBISHI

5)  Touch screen:Taiwan

6)  PLC: MITSUBISHI

7)  Pneumatic components: Airtac

8)  Seals:National brand

9)  Photocell switch and proximity switch:Taiwan



Machine pictures

sterilizing, rising

The automatic rinse rotor has spring loaded grippers mounted radially which pick up bottles

one by one from the infeed transfer rotor. The bottle is inverted against a lever on the rinse valve

to start the rinsing operation. Thus we have NO BOTTLE - NO RINSE. Bottles are washed for

upto three seconds each, before draining ( for removal of residual water ) and uprighting for

transfer to the filling rotor. The rinsing medium is generally product water.

Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty 0

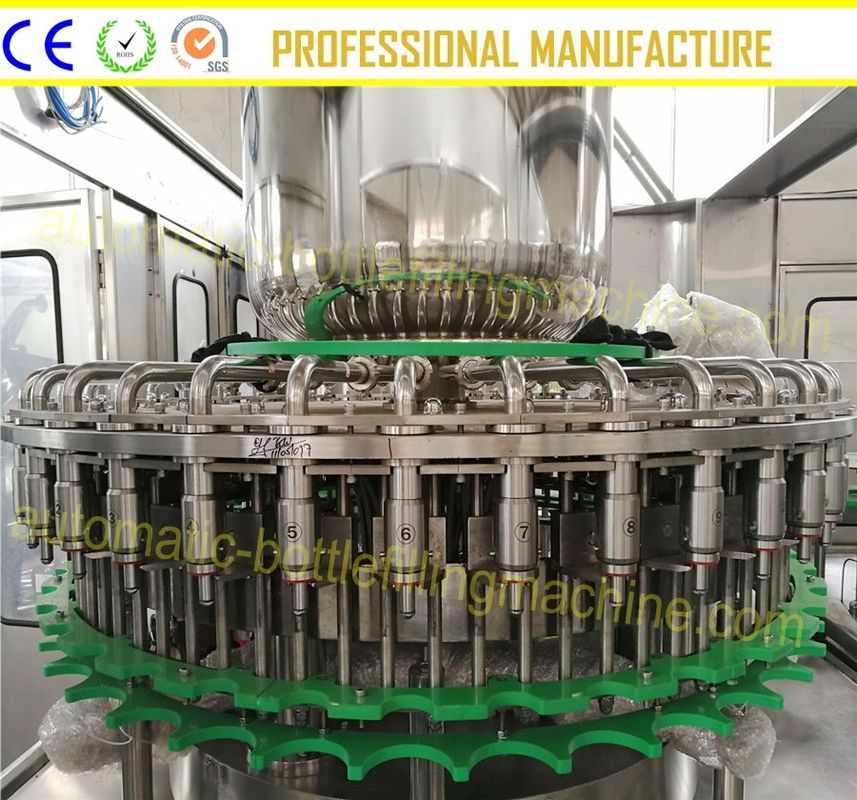

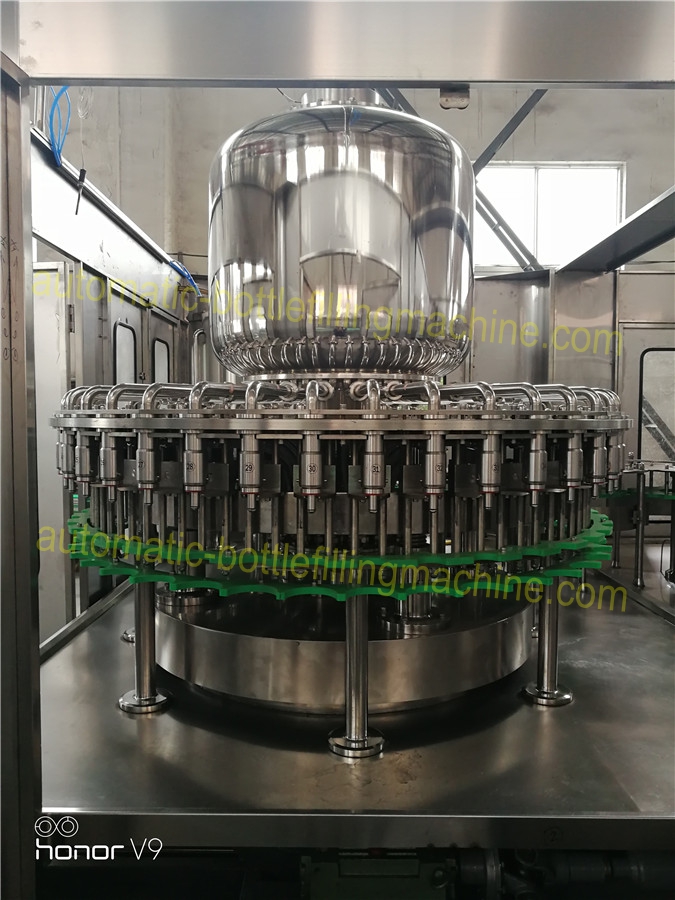

filling

The internationally accepted and approved VENT PIPE filling principle ensures accurate level

filling without spillage. The filling accuracy is ± 5 ml. The fill tank level is regulated automatically by

a PLC controlled electronic probe which reduces the machine speed in the vent of disrupted input

product water supply. The machine speed is then restored to normal once the water supply is

replenished.

Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty 1

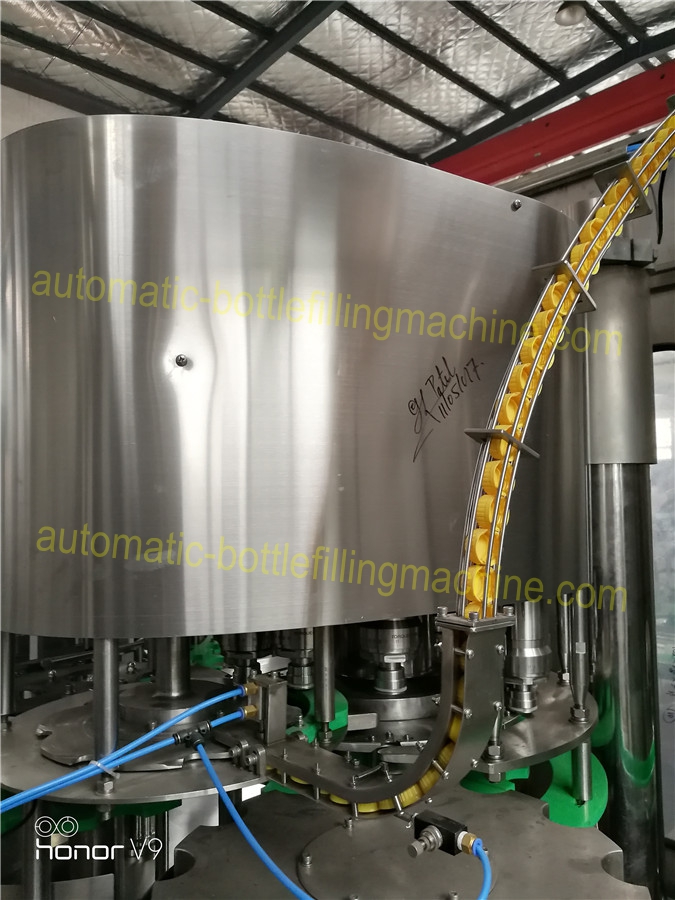

Capping

Torque adjustable, magnetic capping heads mounted on the capping rotor, complete the capping

operation using the extremely dependent PICK & PLACE mechanism. Capping head descends

to push up the cap in two stages and then descends onto the bottle neck to complete capping

operation. The torque on each capping head can be adjustable to achieve optimum capping

results without cap damage / leakage. A unique anti turn device prevents bottle rotation during

capping for positive capping.

Lemon / Pineapple Juice Bottle Filling Machine 20000 Bottles Per Hour 1 Year Warranty 2


Detailed parameter

 20000BPH 500ml /  10000BPH 1L/  7000BPH 1.5L/  5000BPH 2L juice filling machine
Machine modelSterilizing head40heads
Rinsing head40heads
Filling head40heads
Capping head12heads
Suitable bottlematerailPET
Volume100-2000ml
Body diameter50-108mm
Body height50-310mm
Suitable capmaterialPlastic screw cap
diameter28-38mm
Main performance parametersProducing capacity6000BPH(250ML-500ML)bottles per hour
voltage380V 50HZ 3Phases
Power10KW
Dimension6250*3050*2300mmmm
Weight7500kg



We are professional in beverage filling machine production, pls tell

us your request, we will show you best proposal... ...
