Still Water Automatic Bottle Filling Machine Capacity 8000 - 10000BPH CGF24-24-8

Bottled Mineral Water Equipment For Sale,Still Water Bottle Filling

Machine Price


product description

This is our most popular sold model water bottling monobloc machine, CGF24-24-8, it can filling

8000 -10000 bottles hour (based on 500ml PET bottle), it adopts normal pressure normal

tempreture gravity filling, can fill various non-gas liquid, such as mineral water, distill water, flavor

water, juiced beverage etc, it can fill different size bottle, only need the bottle mouth diameter is

same.

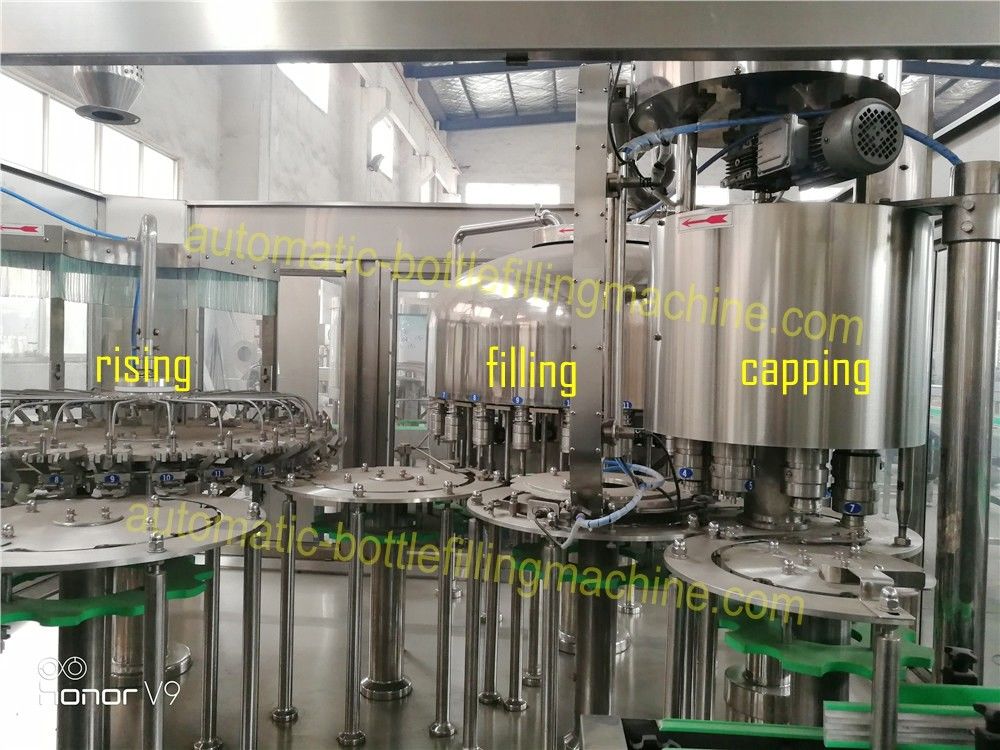

machine pictures

rising station

1) The rotary wheel is a fully AISI304 stainless steel welded structure.
2) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from

Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing

water.
3) Covering of bottle clamps and elevator are product of IGUS
4) The rinse is driven by driving system positioned inside machine frame via gear transmission.


filling station

1) The filler is designed and manufactured with application of Italy technology, providing hardware

guarantee for securing product quality and reducing loss.
2) Rotary wheel are fully made of stainless steel AISI304.
3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring

high filling accuracy and high filling speed.
4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated

by air cylinder.
5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.



capping station

1) The capper is most precise part in3 in1 filling machine, because the quality of machine is important to

running credibility and product quality.
2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal

cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on

the track, by which it can avoid bottle without cover effectively.
3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover

lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.
4) Highly effective acentric way for cap sorting to reduce the abrasion.
5) It has the check-up device to control the cover lift.



Detailed parameter





We are not the highest quality and we are not the highest price,

but we are the highest performance cost ratio... ...
