| Product Name: | Water Filling Machine | Function: | Rising Filling Capping |
|---|---|---|---|
| Model: | CGF18-18-6 | Capacity: | 6000B/H For 500ml Bottle |
| Filling Meterail: | Various Water, Juiced Beverage | Filling Means: | Normal Pressure, Normal Tempreture |
| Suitable Bottle: | PET Bottle | Control: | PLC+Touch Screen |
| Voltage: | 380V 50HZ 3Phases Or Customized | Material: | SUS304 |
| Warranty: | 1 Year | ||
| High Light: | liquid bottle filling machine,automatic bottle filling system |
||
Auto Purified Drinking Water Bottling Machine Production Plant
product description
This is our most popular sold model water bottling monobloc machine, CGF18-18-6, it can filling
6000 bottles hour (based on 500ml PET bottle), it adopts normal pressure normal tempreture
filling, can fill various non-gas liquid, such as mineral water, distill water, flavor water, juiced
beverage etc.
Features
1, This drinking water filling equipment adopts bottle neck holding transmission technology to
realize fully automatic rinsing,filling and capping.
2, All the electrical elements use international famous brand products.
3, The parts which contact with the beverage are made of high quality stainless steel SUS304.
4, It adopts human-machine interface touch-screen and PLC program control.
5, It has automatic trouble protected device.
6, Our machine have the advantage of durable using,high stability,low failure,etc.
machine pictures

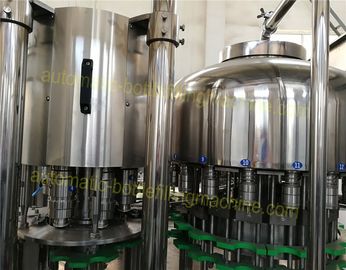

Overall look

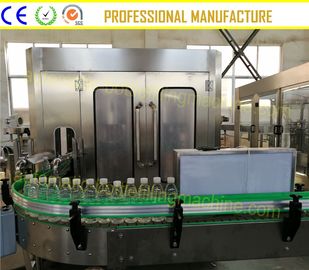

Overlook

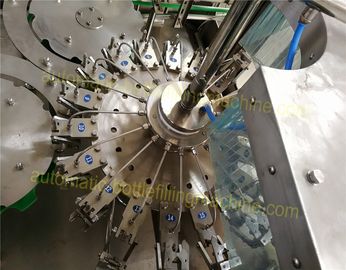

inner look
Detailed parameter
| 5000-6000BPH 500ml /3000BPH 1L/2000BPH 1.5L/1500BPH 2L water filling machine | ||||
| Machine model | Rinsing head | 18 | heads | |
| Filling head | 18 | heads | ||
| Capping head | 6 | heads | ||
| Suitable bottle | materail | PET | ||
| Volume | 100-2000 | ml | ||
| Body diameter | 50-108 | mm | ||
| Body height | 50-310 | mm | ||
| Suitable cap | material | Plastic screw cap | ||
| diameter | 28-38 | mm | ||
| Main performance parameters | Producing capacity | 6000BPH(250ML-500ML) | bottles per hour | |
| Power | 3.5 | KW | ||
| Dimension | 2450*1900*2300mm | mm | ||
| Weight | 3500 | kg | ||
if your capacity is less than 3000BPH, you can select the below small capacity
/test/automatic-bottlefillingmachine.com/sale-10147568-automatic-small-mineral-water-pet-bottle-filling-capping-and-labeling-machine.html
We are not the highest quality and we are not the highest price,
but we are the highest performance cost ratio... ...
