Touch Screen Auto Filling Machine , Automated Bottle Filler For Beverage / Non Gas Liquid

China Touch Screen Auto Filling Machine , Automated Bottle Filler For Beverage / Non Gas Liquid supplier
Touch Screen Auto Filling Machine , Automated Bottle Filler For Beverage / Non Gas Liquid supplier Touch Screen Auto Filling Machine , Automated Bottle Filler For Beverage / Non Gas Liquid supplier Touch Screen Auto Filling Machine , Automated Bottle Filler For Beverage / Non Gas Liquid supplier Touch Screen Auto Filling Machine , Automated Bottle Filler For Beverage / Non Gas Liquid supplier

Large Image :  Touch Screen Auto Filling Machine , Automated Bottle Filler For Beverage / Non Gas Liquid

Product Details:

Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: CGF8-8-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film, standard wooden cases
Delivery Time: 35 working days
Payment Terms: L/C, T/T
Supply Ability: 90 sets per year
Contact Now
Detailed Product Description
Product Name: Water Filling Machine Machine Type: Monobloc
Function: Rising Fillig Capping Model: CGF8-8-3
Suitable Cap: Plastic Screw Cap Voltage: 380v 50hz 3phase Or Customized
Control: PLC+Touch Screen Material: SUS304
Dimension: 1800*1500*2200mm Weight: 1800kg



Automatic Liquid Bottle Filling Machine Plant Price For Water / Juiced



Beverage / Other Non-Gas Liquid





product description



this is our smallest monobloc, it integrates rising filling capping three functions in



one unit, it has 8 rising heads, 8 filling heads, 3 capping heads, can fill 3000 bottles



per hour, it's a ideal equipment for small scale production.


Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.



All the machine part which contact with liquid is high quality stainless steel 304. The relative



fittings are from international famous brand.



This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck,



rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned



completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling



valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic



torque bottle holding type can minimize the cap damage rate and make the capping performance



the best.



This machine owns the reasonable, stable and safe design. Under the condition that the bottle



neck size is the same, only the output star wheel needs to be changed if bottles are different. It



improves the efficiency a lot.



We are the water filling machine manufacturers in China.



technical parameter



Model: CGF8-8-3
Capacity:500ml(b/h) 2000
Suitable Bottle Height(mm) 130-280
Suitable Bottle Body Diameter(mm) Φ40-φ80
Suitable Cap Shape Plastic Screw Cap
Filling Precision ≤±5mm(Liquid Level)
Power: (KW) 3
Filling Temperature: Room Temperature
Water Pressure of Washing Bottle(Mpa) 0.18
Water Consumption for Washing Bottle(kg/hr) 800
Gas Source Pressure(Mpa) Normal Pressure
Gas Consumption(m 3 /min) 0.3
Size L×W×H (mm) 1900x1400x2350
Total Weight:(kg) 1500
Power Supply 380V/50HZ



Machine pictures

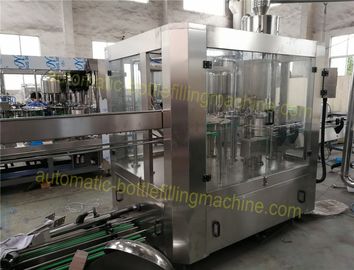

overall look



Touch Screen Auto Filling Machine , Automated Bottle Filler For Beverage / Non Gas Liquid

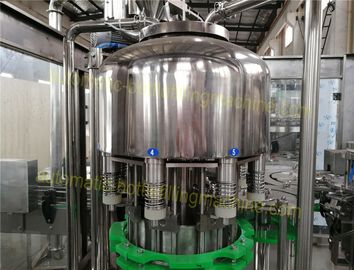

inner look



Touch Screen Auto Filling Machine , Automated Bottle Filler For Beverage / Non Gas Liquid



electrical system



Touch Screen Auto Filling Machine , Automated Bottle Filler For Beverage / Non Gas Liquid



working process of the plastic bottle filling machine:



1.Rinsing

Rotative rinsing turret one treatment, fixed nozzles, with grippers. The grippers take the bottles



from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.



After the gripping, the bottle is turned upside down and centred above a spraying nozzle which



directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to



an upright position again.



2.Filling



The starwheels drive the bottles always "by the neck" through the rinsing, filling and capping



step.For the various types of bottle, it is easy to adjust the structure for the operator by our



specializeddesign.Product bowl is to reduce the loss of heat.If the temperature is low than the



setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank



and return to UHT again to sterilize with pump.



3.Capping



Rotative capping turrent, suitable to the application of screw plastic caps on PET bottles. The



fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating



the capping heads.The heads are raised and lowered by the action of a follower that is riding on



a shaped cam.



we also have other capacity



Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12 CGF50-50-15
Number of rising heads 16 18 24 32 40 50
Number of filling heads 12 18 24 32 40 50
Number of capping heads 6 6 8 10 12 15
Bottle standard(mm)

Diameter:Φ50-Φ108

Height:150-320

Rated production capacity(500ml) 4000BPH 6000BPH 10000BPH 12000BPH 16000BPH 24000BPH
Installed capacity(KW) 3.8 4.3 6.5 8.7 9.5 12



welcome you have a furthur learn,we will provide you more



information, it's helpful to learn this machine's market price... ...
