3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line

3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line

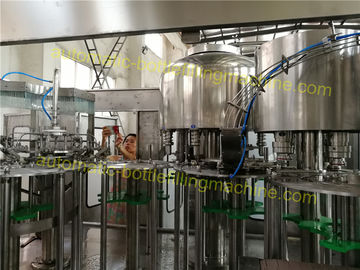

3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line 3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line 3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line 3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line

Large Image :  3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE,SGS
Model Number: BCGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film, standard wooden cases
Delivery Time: 35 working days
Supply Ability: 90sets per year
Detailed Product Description
Name: Bottled Water Machine Function: Washing Filling Capping
Suitable Bottle: PET Bottle Bottle Size: 3-10L
Suitable Cap: Plastice Screw Cap Filling Material: Various Water, Juice, Edible Oil, Lubricating Oil
Capacity: 800 Bottles Per Hour (5L) Material: SUS304/316
Control: PLC+Touch Screen Warranty: 1 Year
High Light:

automatic bottling machine

,

automatic bottle filling system



3L / 5L / 10L big bottled drinking water ,mineral water 3 in 1 bottling filling production



machine line prices





1.Brief introduction



the big bottle 3-10L water filling machine has two kinds, liner and rotary, It can be used to fill



mineral water, pure water, juiced drink,by changing the valve, it can used to fill oil,



edible oil and lubirate oil,etc.




 constructions


Detailed introduciton of rotary one

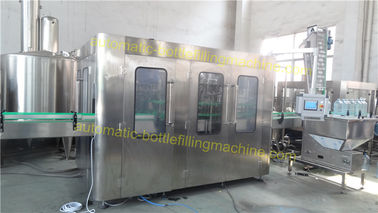

The rotary 3-in-1 monoblock is composed of rinser, filler, capper, frame, sealing



window, main motor and transferring system, cap unscrambler and electric



control system etc.



The overturning device of the rinser is mainly composed of water distributor,



bottle clamp, up turnplate, guide rail, protection cover, spraying device,



defrosting tray.Filling device is mainly composed of filling barrel, filling valve,



guide rail, elevating device, elevating device, etc.Capping device is composed of



cap unscrambler, cap drop rail and capper.The assistant equipments include



rinsing water return tank, bottle-in conveyor and bottle-out chain. Besides that,



according to the customer’s need, the machine could be equipped with manual



bottle loader (or bottle unscrambling), manual bottle arranging multichains,



automatic cap elevator.





JINYATE---Product introduction



Machine name 3 l 5l 10l bottled rotary water filling machine
Rising heads number 9
Filling heads number 9
Capping heads number 4
Filling speed 1000BPH (5L)
Bottle size 3L-10L (Customized)







JINYATE---Machine Feature



1. Specially designed for filling bottles from 3 liter-10 liter.
2. Compact structure, stable running, high quality.
3. All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean.
4. High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily.
5. Place & capping system, electromagnetic capping heads, with burden discharge function,make sure minimum bottle crash during capping.
6. No bottle,no filling, no capping and Automatic stop when lack of bottle.




Rising part:



1. The rotary wheel is a fully stainless steel welded structure.



2. The machine applies unique overturning bottle clamp, which is an innovation



of our company. This bottle clamp grips bottle at neck position, avoiding bottle



mouth thread contamination caused by rubber gripper block of a traditional



bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and



durable.



3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable



of cleaning any part of bottle inner wall, and also saves rinsing water.



4. All sliding bushes of lifting device use anti-corrosion maintenance free



bearing.



5. The rinser is driven by driving system positioned inside machine frame via



gear transmission.





The water filling machine is mainly to wash PET/PC/PP/PE, plastic bottles; The



washing way is jetting, the structure is rotary. The machine can continuous



automatic complete the processing: overturned bottle, turn bottle, wash bottle, water



dripping. The whole processes include two steps, washing and dripping. It is a



necessary machine for nature mineral water, pure water, spring water and other



liquid filling production line.



3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line 0

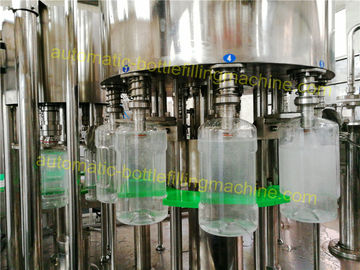

Filling part:



1. Rotary wheel fully made of stainless steel SUS 304.



2. Gravity filling method.



3. Filling valves are made of SUS316L.



4. Filling valves are reasonably structured with accurate filling.



5. Bottles go up and down in the function of cam through elevator, to process



filling with contact to bottle-mouth.



6. Level of cylinder is controlled with float-ball.



7. Filler is driven through gears inside the machine frame.



8. Link-wheels in rinser, filler and capper are transported in ringed support of



bottle-neck.



Filling part is composed of filling barrel, filling valves, filling pump, bottle hanging



device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum



pump, etc.



3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line 1

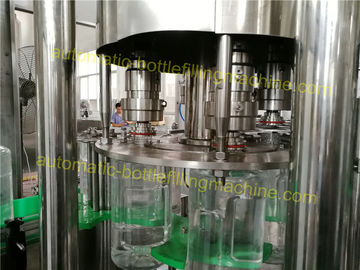

Capping part:



1. Cap distributing chute is equipped with reverse cap stop and reverse cap



pick-out mechanism.



2. Cap distributing chute is equipped with a photocell switch to stop the capper



when there is no cap inside the chute.



3. The capper is equipped with inlet bottle detection switch.



4. Centrifugal way of cap arranging is adopted to reduce damage of caps.



5. A cap inspecting system is applied to control on-off of elevator.



The capping machine can cap different kinds of bottles, it is reliable, easy to



operate and easy to maintain. It are widely used in water, food, drinks, medicine,



chemicals, reagents, pesticides and automatic packing etc. It is the most popular



rotary screw automatic capper.



3L / 5L / 10L Big Bottled Drinking Water , Mineral Water 3 In 1 Bottling Filling Production Machine Line 2



electrical system
