Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant

China Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant supplier
Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant supplier Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant supplier Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant supplier Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant supplier Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant supplier

Large Image :  Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 6000-8000BPH Power: 6.57kw
Overall Dimension(L*W*H): 2750*2180*2200mm Warranty: 1 Year For Free
Material: Food Grade Stainless Steel 304 Voltage: 380V 50Hz
Driven Type: Electric Filling Pressure: Balanced Pressure Filling
Filling Material: Gas Contained Beverage Bottle Type: Glass Bottle



4000kg Glass Bottle Carbonated Soft Drink Filling Machine/Bottling





Plant With SS304




Product description



1.It is designed for Glass bottle filling machine



2.We can call it "Carbonated soft drink filling machine","soft drink bottling plant","carbonated drink filling



machine".



3.Its capacity is 6000-8000 bottles per hour

The high-quality stainless machine is made and designed through introduce of technology from Germany



KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with



the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting



and hygienic structure, which is convenient to be operated and maintained.



Features



1. Easy adjustment: An automatic height adjust device is available which offers you very easy operation



only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly



changed without tools.

2. Advanced construction features: The filler carousel is mounted on a huge heavy duty combined



bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies



precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle



lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle



explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding



surface of cylinders.

3. High efficiency and low beverage loss: Owing to the special constructions features the machinery can



run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system



can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve



automatically be closed in very short time avoiding beverage and gas loss.

4. Sanitation: All parts which contact with beverage are made with high quality polished stainless steel.



The CIP system offers automatically cleaning and sterilization of the filler.Using PLC control the machine



monitors, the filling liquid level automatically.



Technical parameter



Model: DCGF18-18-6 DCGF24-24-8 DCGF32-32-12 DCGF40-40-12
Capacity :500ml 3000 8000 12000 16000
Bottle shape: roud or square
PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap: PE srew cap
Filling precision: ≤±5mm
Filling pressure:(Mpa) 0.15-0.35 0.15-0.35 0.15-0.35 0.15-0.35
Rinsing pressure:(Mpa) 0.2-0.25 0.2-0.25 0.2-0.25 0.2-0.25
Filling volume :(L) 3.5 4 6 8
Overall size:(mm) 2450*1800*2200 2780*2200
*2350
3600*2650
*2350
3800*2950
*2400
Weight: (kg) 3000 4000 5000 6000


Inside look


Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant

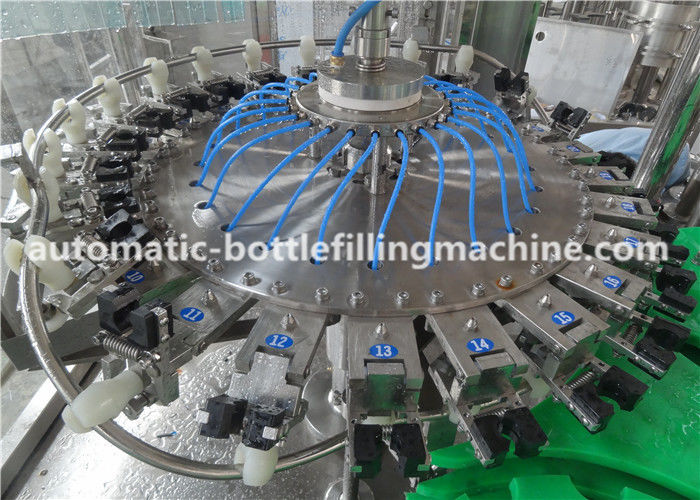

Filling part



Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant

Cap elevator


Glass Bottle Carbonated Drink Filling Machine Electric Driven Bottling Plant




IF you want to the detailed quotation,please leave me these message


1, bottle volume


2, bottle materail (machines for glass bottle and plastic bottle are different)


3, how many bottles per hour you want to produce ?


4, do you need this water filling machines only or whole water production line
