Single Head Beverage Filling Machine 1000 - 2000BPH Rinsing Filling Capping Machine

China Single Head Beverage Filling Machine 1000 - 2000BPH Rinsing Filling Capping Machine supplier
Single Head Beverage Filling Machine 1000 - 2000BPH Rinsing Filling Capping Machine supplier Single Head Beverage Filling Machine 1000 - 2000BPH Rinsing Filling Capping Machine supplier Single Head Beverage Filling Machine 1000 - 2000BPH Rinsing Filling Capping Machine supplier Single Head Beverage Filling Machine 1000 - 2000BPH Rinsing Filling Capping Machine supplier

Large Image :  Single Head Beverage Filling Machine 1000 - 2000BPH Rinsing Filling Capping Machine

Product Details:

Place of Origin: CHINA(MAINLAND)
Brand Name: JINYATE
Certification: CE SGS
Model Number: QS-12,CYG-12,FXZ-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film, standard wooden cases
Delivery Time: 35 working days
Supply Ability: 90 sets per year
Contact Now
Detailed Product Description
Name: Small Capacity Split Water/juice Bottling Machine Function: Bottle Washing Filling Capping
Machine Type: Split Suitable Bottle: PET Bottle
Suitable Size: 150-2000ml Suitable Cap: Plastice Screw Cap
Filling Material: Various Water, Juiced Drink, Other Non-gas Beverage Max Capacity: 2000 Bottles Per Hour
Material: SUS304 Warranty: 1 Year



Mini Mineral Water/ Small Pure Water Filling Plant Production Line





Price



Single Head Beverage Filling Machine 1000 - 2000BPH Rinsing Filling Capping Machine



Products description


this machine is specially desighed for small scall production, The production line includes QS automatic



washer, CYG often pressure filler, FXZ cap turning machine, SSJ carrying machine etc. the split liner



washing filling and capping machine are linked together by conveyor. It's max capacity is 2000 bottles



per hour, it adopts normal pressure and normal tempreture filling means, suitable for non-gas beverage,



such as mineral water, pure water, vitamin water, distilled water, juiced beverage, tea, coffee



etc.it is easy to operate and commercial cost, right for small scale production business.





Technical parameter



Type CGZ12-12-1 CGZ18-18-6 CGZ24-24-8 CGZ32-32-8
Washing heads 12 18 24 32
Filling heads 12 18 24 32
Capping heads 1 6 8 8

Capacity

Base on 500ml

1000-2000bph 1500-4000bph 2000-5000bph 3000-8000bph



machine details

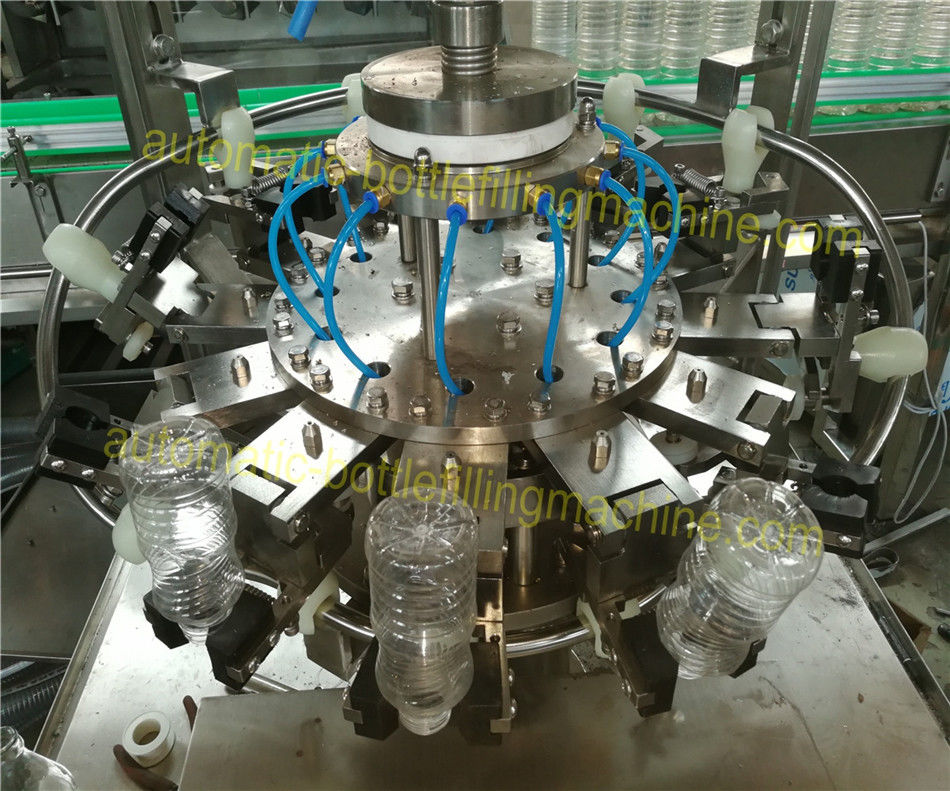

Rinsing part



 Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide



rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.The



Washing mahcine is mainly to wash PVC, PET, etc L type plastic bottles; it also can be used to wash



disposable glass bottles. The washing way is jetting, the structure is rotary. The machine can continuous



automatic complete the processing: overturned bottle, turn bottle, wash bottle, water dripping. The whole



processes include two steps, washing and dripping. It is a necessary machine for nature mineral water,



pure water, and other liquid filling production line.

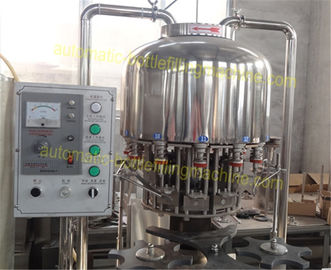

Filling part



The filling machine is mainly composed of filling barrel, filling valves (normal temperature and normal



pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator,



pressure gauge, vacuum pump, etc. is to fill water,wine, juice etc non carbonated soft drink, it also can



use to fill vinegar, milk,etc; because all the filling it closed condition, it can eliminate pollution spreading.





Single Head Beverage Filling Machine 1000 - 2000BPH Rinsing Filling Capping Machine





Capping part



Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop



rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.



Single Head Beverage Filling Machine 1000 - 2000BPH Rinsing Filling Capping Machine





if your capacity is more than 2000BPH, you can select the below washing filling capping 3-in-1



monobloc



http://www.maoyt.com/test/domaindemo-27708.tmp/supplier-240158-bottle-water-filling-machine



we can supply all the complete line plants:



1.water treatement system



2.End-line package plants



3. our other machines to fill the following beverage





About our company



Zhangjiagang Jinyate Machinery Co., Ltd. is located in Zhangjiagang city, which is near to



Shanghai. We are an industry leader in beverage filling &package machine, we can help provide



a customized design to meet your demands. Our expertise in the follong categories will bring your



ideas to your customers.



1. bottling minereal/pure water production line (500ml, 1000ml,2000ml);



2. barrel mineral/ pure water production line (3L,5L,10L,19L,)



3. bottling carbonated beverage production line (like coca cola);



4. bottling juice production line;



5. canning beverage production line;



6. glass bottle beverage production line;



7. carbonated beverage and juice production auxiliary plants



With the comprehensive understandeing in various ranges of beverage products and



long-time experience in import-export sector, with our profession, enthusiastic determined team,



we are proud to say that we have been shipping many order to the USA, Germany, Austrilia,India,



Africa, Malaysia, Russia..., our good quality and service win us worldwide old customeres.
